Ajet swarm docker

This guide explains how to launch the AgentJet Swarm Server inside a Docker container. The Swarm Server is the GPU-side component responsible for gradient computation, and weight updates. It exposes an OpenAI-compatible API that Swarm Clients connect to for training.

Not familiar with Swarm? Read the Swarm Introduction first.

Prerequisites

Requirement	Detail
Docker	With GPU support (`nvidia-container-toolkit`)
AgentJet Docker image	`ghcr.io/modelscope/agentjet:main` (built from the AgentJet repository)
LLM model weights	Downloaded locally (e.g., `Qwen2.5-7B-Instruct`)

Command Template

Run the command below:

docker run --rm -it \
  -v /path/to/host/Qwen/Qwen2.5-7B-Instruct:/Qwen/Qwen2.5-7B-Instruct \
  -v ./swarmlog:/workspace/log \
  -v ./swarmexp:/workspace/saved_experiments \
  -p 10086:10086 \
  --gpus=all \
  --shm-size=32GB \
  ghcr.io/modelscope/agentjet:main \
  bash -c "(ajet-swarm overwatch) & (NO_COLOR=1 LOGURU_COLORIZE=NO ajet-swarm start &>/workspace/log/swarm_server.log)"

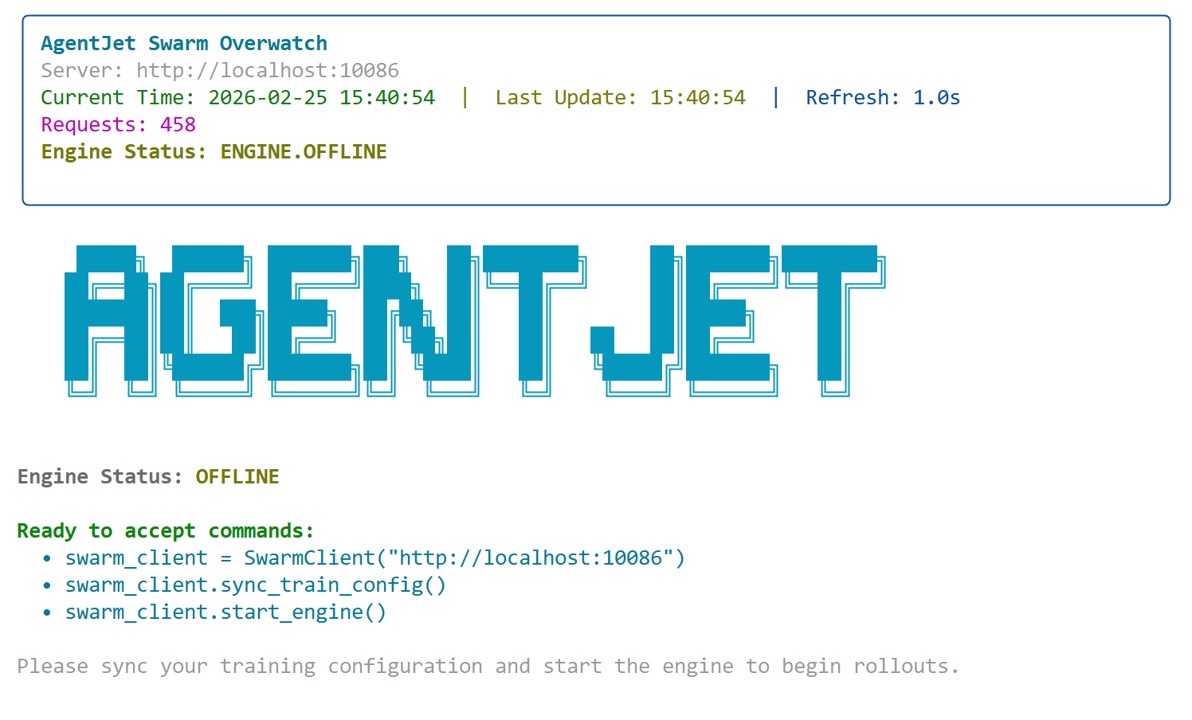

And when completed, you will see a interface like this, which means the deployment is successful:

Flag / Argument	What it does
`--rm`	Automatically remove the container when it exits. Keeps things clean.
`-it`	Allocates an interactive TTY. Required for the `ajet-swarm overwatch` TUI monitor to render correctly inside the container.
`-v /path/to/host/Qwen/Qwen2.5-7B-Instruct:/Qwen/Qwen2.5-7B-Instruct`	Model mount — mounts your local model weights directory into the container. The path inside the container must match the `model` field you configure in your training job.
`-v ./swarmlog:/workspace/log`	Log mount — mounts a local `./swarmlog` directory to persist server logs outside the container. The VERL training log is written here.
`-p 10086:10086`	Port mapping — exposes port `10086` so that Swarm Clients on other machines can reach the server via `http://<server-ip>:10086`.
`ghcr.io/modelscope/agentjet:main`	The AgentJet Docker image.
`bash -c "..."`	Runs two processes concurrently inside the container (see below).

The Two Processes Inside `bash -c`

The command launches two background processes with &:

(ajet-swarm overwatch)
&
(NO_COLOR=1 LOGURU_COLORIZE=NO ajet-swarm start &>/workspace/log/swarm_server.log)

Process	What it does
`ajet-swarm overwatch`	Starts the real-time TUI monitor in the foreground. Displays the current server state (OFFLINE / BOOTING / ROLLING / WEIGHT_SYNCING), active episodes, and rollout statistics.
`ajet-swarm start`	Starts the Swarm Server itself — initializes VERL training loop, vLLM inference engine, and the FastAPI HTTP server on port `10086`.
`NO_COLOR=1 LOGURU_COLORIZE=NO`	Disables ANSI color codes in the server log so the log file `swarm_server.log` is readable as plain text.
`&>/workspace/log/swarm_server.log`	Redirects both stdout and stderr of the server process to the log file (which is persisted to your host machine via the volume mount).

Concrete Example

The following example mounts a model downloaded at host directory /root/agentjet/modelscope_cache/Qwen/Qwen2___5-7B-Instruct, and we would like to mount it at container directory: /mnt/data_cpfs/model_cache/modelscope/hub/Qwen/Qwen/Qwen2.5-7B-Instruct

docker run --rm -it \
  -v /root/agentjet/modelscope_cache/Qwen/Qwen2___5-7B-Instruct:/mnt/data_cpfs/model_cache/modelscope/hub/Qwen/Qwen/Qwen2.5-7B-Instruct \
  -v ./swarmlog:/workspace/log \
  -v ./swarmexp:/workspace/saved_experiments \
  -p 10086:10086 \
  --gpus=all \
  --shm-size=32GB \
  ghcr.io/modelscope/agentjet:main \
  bash -c "(ajet-swarm overwatch) & (NO_COLOR=1 LOGURU_COLORIZE=NO ajet-swarm start &>/workspace/log/swarm_server.log)"

Make sure the container-side path matches whatever model path you specify in your AgentJetJob.

What Happens After Launch

Once the container starts, you will see the ajet-swarm overwatch TUI in your terminal. The server begins in OFFLINE state and transitions through:

OFFLINE → BOOTING → ROLLING → WEIGHT_SYNCING → ROLLING → ...

The server only moves to BOOTING after a Swarm Client sends it a training configuration and calls start_engine(). Until then it waits safely in OFFLINE.

Meanwhile, all VERL and training logs stream into ./swarmlog/swarm_server.log on your host machine.

Connecting a Swarm Client

From any machine (no GPU required) that can reach the server on port 10086, run your Swarm Client:

from ajet.tuner_lib.experimental.as_swarm_client import SwarmClient
from ajet.copilot.job import AgentJetJob

swarm_worker = SwarmClient("http://<server-ip>:10086")
swarm_worker.auto_sync_train_config_and_start_engine(
    AgentJetJob(
        algorithm="grpo",
        n_gpu=8,
        model="/mnt/data_cpfs/model_cache/modelscope/hub/Qwen/Qwen/Qwen2.5-7B-Instruct",
        batch_size=32,
        num_repeat=4,
    )
)

The model path here must be the container-side path (right-hand side of the -v mount), not the host path.

See Swarm Best Practices for full client examples.

Troubleshooting

Symptom	Likely Cause	Fix
Server stays OFFLINE forever	No client has called `start_engine()`	Run your Swarm Client script to send the training config
`Model not found` error in log	Container-side model path is wrong	Verify the right-hand side of your `-v` flag matches the `model` field in `AgentJetJob`
Client cannot connect to port `10086`	Firewall or wrong IP	Check server firewall rules; use `ajet-swarm overwatch --swarm-url=http://<ip>:10086` to test connectivity
Log file is empty	`./swarmlog` directory doesn't exist on host	Create it first: `mkdir -p ./swarmlog`
