General Multi-Step RFT

In Trinity-RFT, we support general multi-step RFTs, which can be used to train agents by interacting with environments in multiple rounds.

Different from the multi-turn RFT that concatenates the interaction results into one single Experience, this approach treats each step as an individual Experience, enabling RL agents to handle longer contexts.

We will now illustrate the general multi-step workflow using ALFWorld. For a hands-on look, you can skip directly to the code implementation.

Build a general step-wise workflow

Basic concept

In Trinity, we provide two types of general step-wise workflows: StepWiseRewardWorkflow and RewardPropagationWorkflow. These workflows setup the basic structure of a step-wise workflow and returns the a list of experiences in each run. Their difference is StepWiseRewardWorkflow computes the reward for each step and RewardPropagationWorkflow computes the reward after all steps and propagates the reward to the previous steps. See trinity/common/workflows/step_wise_workflow.py for more details.

To build a new workflow, you mainly need to identify each interaction step in step() and the reward function in reward(). For example, the core code of ALFWorld workflow is shown as follows:

class StepWiseAlfworldWorkflow(RewardPropagationWorkflow):
    ...

    def step(self, step_num: int) -> bool:
        if self.done:
            return False

        # Format observation for the model
        format_obs = format_observation(self.observation)  # type: ignore
        self.memory.append({"role": "user", "content": format_obs})

        # Get action from the model
        responses = self.model.chat(self.memory)
        response_text = responses[0].response_text
        self.memory.append({"role": "assistant", "content": response_text})
        action = parse_action(response_text)

        # Execute action in the environment
        observation, reward, done, info = self.env.step(action)

        # Update internal state
        self.observation = observation
        self.done = done
        if self.done:
            self.final_reward = reward

        # Return False to stop the run if the episode is done
        return not self.done

    def reward(self, exps: list[Experience]) -> float:
        return self.final_reward

Also, remember to register your workflow:

@WORKFLOWS.register_module("step_wise_alfworld_workflow")
class StepWiseAlfworldWorkflow(RewardPropagationWorkflow):
    """A step-wise workflow for alfworld task."""
    ...

and include it in the init file trinity/common/workflows/__init__.py

 # -*- coding: utf-8 -*-
 """Workflow module"""
 from .workflow import WORKFLOWS, MathWorkflow, SimpleWorkflow
+from .envs.alfworld.alfworld_workflow import StepWiseAlfworldWorkflow

 __all__ = [
     "WORKFLOWS",
     "SimpleWorkflow",
     "MathWorkflow",
+    "StepWiseAlfworldWorkflow",
 ]

Other Configuration

In general multi-step scenarios, each run may generate various number of experiences. To accomodate this case, we provide some flexible designs.

  • algorithm.add_strategy = step_wise_grpo: This function allows you compute the advantages for the collected experience before adding to the buffer. For this example, we use step_wise_grpo which broadcasts advantages from the last step to previous steps.

  • buffer.train_batch_size: The number of experiences to be sampled from the buffer for training, which can be different from the number of generated experiences in each explore step.

  • buffer.trainer_input.use_priority_queue = true: Using PriorityQueue allows the model to use the experiences with higher priority.

  • synchronizer.sync_style = dynamic_by_explorer: The explorer determines when to synchronize the model weights with the trainer.

The example configuration is shown as:

project: "ALFWORLD"
name: "Step_Wise_Alfworld"
checkpoint_root_dir: /PATH/TO/CHECKPOINT/ALFWORLD_RFT/
algorithm:
  algorithm_type: grpo
  repeat_times: 16
  add_strategy: step_wise_grpo
model:
  model_path: /PATH/TO/MODEL/
  max_response_tokens: 16384
  max_model_len: 20480
cluster:
  node_num: 1
  gpu_per_node: 8
buffer:
  total_epochs: 20
  batch_size: 16
  train_batch_size: 7680  # here: batch_size * repeat_times * max_env_steps
  max_retry_times: 3
  max_retry_interval: 1
  explorer_input:
    taskset:
      name: alfworld
      storage_type: file
      path: 'examples/grpo_alfworld/alfworld_data' # PATH TO ALFWORLD DATA
      format:
        prompt_key: 'game_file'
      rollout_args:
        temperature: 1.0
        logprobs: 0
      workflow_args:
        max_env_steps: 30
      enable_progress_bar: false
    default_workflow_type: 'step_wise_alfworld_workflow'
  trainer_input:
    experience_buffer:
      name: alfworld_buffer
      storage_type: queue
      use_priority_queue: true
explorer:
  max_repeat_times_per_runner: 1
  runner_num: 32
  max_timeout: 3600
  rollout_model:
    enable_history: true
    engine_num: 2
    tensor_parallel_size: 2
    enable_prefix_caching: false
    enforce_eager: true
    dtype: bfloat16
    seed: 42
    gpu_memory_utilization: 0.7
    enable_chunked_prefill: true
  env_vars:
    TMPDIR: /PATH/TO/ALFWORLD_TMP_DIR
synchronizer:
  sync_style: dynamic_by_explorer
  sync_method: 'nccl'
  sync_interval: 2
  sync_timeout: 3600
trainer:
  trainer_type: 'verl'
  trainer_config_path: 'examples/grpo_alfworld_general_multi_step/train_alfworld.yaml'
  save_interval: 50

Below, we provide the commands for running the ALFWorld task.

Example: Multi-Step ALFWorld

Environment Preparation

To install the ALFworld environment, you can follow the instructions below.

  1. Pip install: pip install alfworld[full]

  2. Export the path: export ALFWORLD_DATA=/path/to/alfworld/data

  3. Download the environment: alfworld-download

Now you can find the environment in $ALFWORLD_DATA and continue with the following steps.

You may refer to the original repository for more details.

Data Preparation

Our dataset follows the format in Huggingface datasets library, so we should correspondingly convert our env dataset.

Just check the data preparation scripts and run the following command.

python examples/grpo_alfworld/get_alfworld_data.py

The task is described as an environment instead of a single prompt. The task description is the game_file file path.

Config preparation and run the experiment

The default config file is alfworld.yaml. You may revise the configurations properly and run the experiment!

trinity run --config examples/grpo_alfworld_general_multi_step/alfworld.yaml

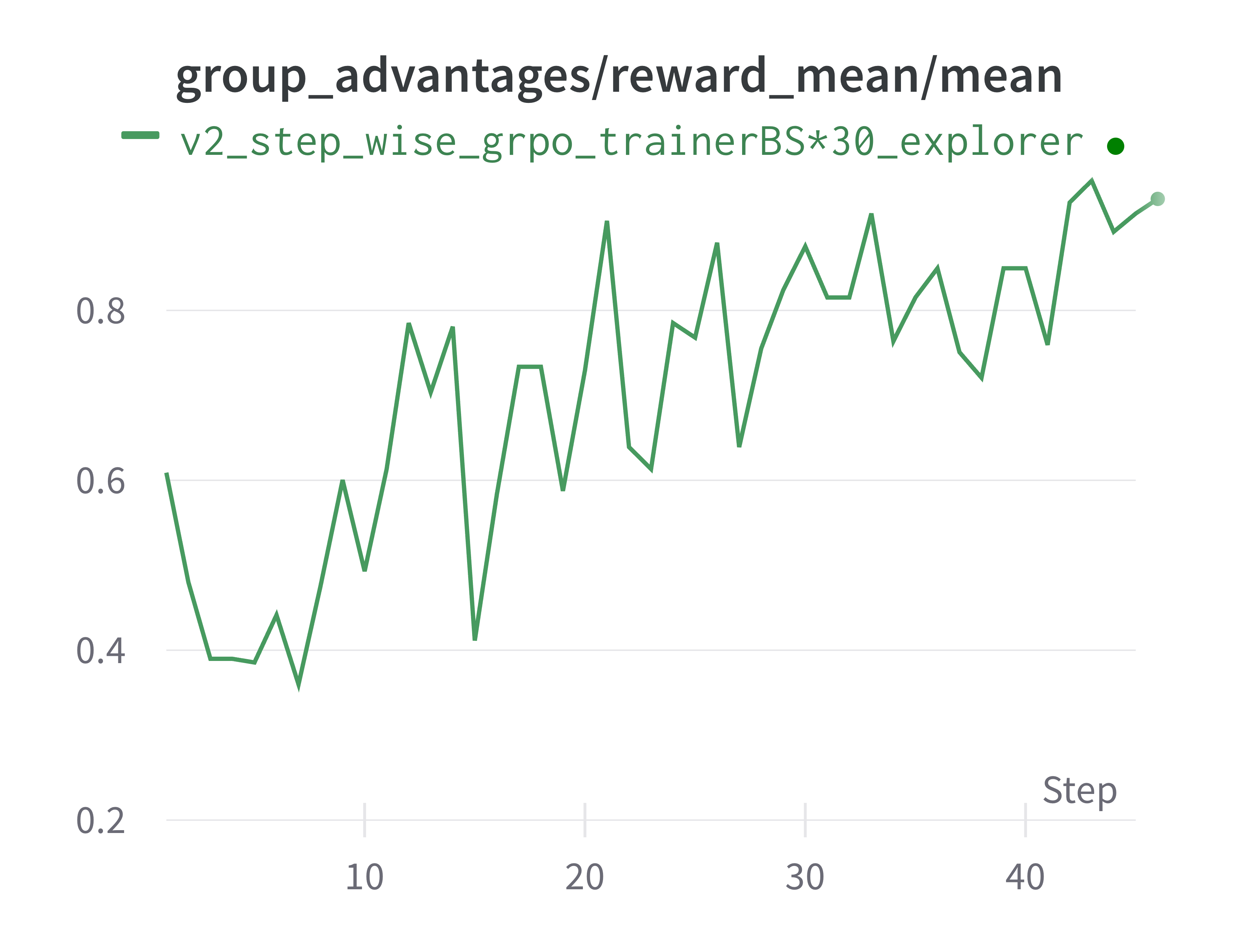

The results are shown in the following figure.

Note that we use a Qwen2.5-3B model fine-tuned with SFT as our starting point, ensuring that the model has some basic understanding of the environment.
